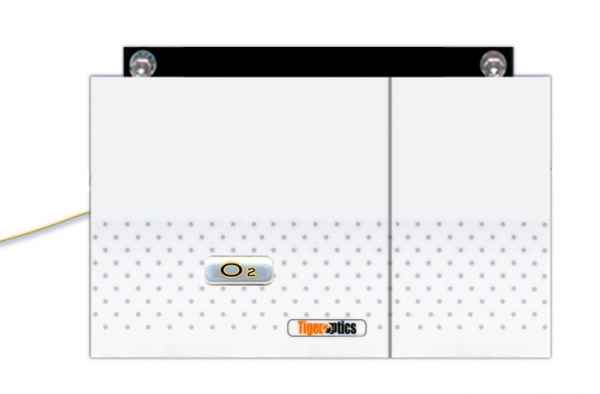

LaserTrace 2.5 O2
High-performance ppt-level oxygen detection
Delivering your best measurement
Detect gas quality upsets before they can damage your processes. Using Tiger Optics’ LaserTrace 2.5 O2 analyzer, you can verify oxygen impurity levels with part-per-trillion accuracy, drift-free stability, and virtually immediate response. You’ll find our system exceptionally easy and fast to install, and effortless to maintain, with built-in zero verification. It measures in bulk gases, specialty gases, and gas mixtures. And its robust design—free of moving parts—results in an analyzer that has a high Mean Time Between Failure (MTBF) rate and a very low Cost of Ownership (CoO).
Designed for trace level contamination analysis, the LaserTrace 2.5 O2 offers:
- Industry-leading parts-per-trillion detection capability
- Unprecedented speed of response
- Widest available dynamic range
- Absolute measurement (freedom from calibration gases)
- Flexibility: up to four (4) measurement points per electronics module
- Extremely low cost of ownership
- Electronics module compatible with existing LaserTrace sensor modules
Applications
| Detection and Matrix | Range | LDL | Sensitivity |
|---|---|---|---|
| O2 in N2 | 0 – 2.5 ppm | 250 ppt | 200 ppt |
| O2 in He | 0 – 0.5 ppm | 100 ppt | 50 ppt |
| O2 in Ar | 0 – 1 ppm | 110 ppt | 90 ppt |
| O2 in H2 | 0 – 2 ppm | 180 ppt | 150 ppt |
| O2 in CO2 | 0 – 5 ppm | 1000 ppt | 400 ppt |
| Performance | |
|---|---|
| Operating range | See Detection Capability table |
| Detection limit (LDL, 24 h peak-to-peak) | See Detection Capability table |
| Sensitivity (3σ) | See Detection Capability table |
| Precision (1σ, greater of) | ± 0.75% or 1/3 of Sensitivity |
| Accuracy (greater of) | ± 4% or 1/2 of LDL |
| Speed of response | < 3 minutes to 95% |
| Environmental conditions | 10°C to 40°C, 30% to 80% RH (non-condensing) |
| Storage temperature | -10°C to 50°C |
| Gas Handling System and Conditions | |
| Wetted materials | 316L stainless steel (optional corrosion-resistant material), 10 Ra surface finish |
| Gas connections | 1/4” male VCR inlet and outlet |
| Leak tested to | 1 x 10-9 mbar l / sec |
| Sample inlet pressure | 10 − 125 psig (1.7 − 9.6 bara) |
| Flow rate | 0.5 – 1.8 slpm (gas dependent) |
| Sample gases | Most inert, toxic and passive matrices |
| Gas temperature | Up to 60°C |
| Dimensions, H x W x D | |
| Electronics unit | 14" x 19" x 14" (356 mm x 483 mm x 356 mm) |
| O2 sensor (rackmount only) | 8.75" x 19" x 27" (222 mm x 483 mm x 686 mm) |
| Sensor rack (fits 1 H2O and 1 O2 sensor) |
8.75" x 19" x 27" (222 mm x 483 mm x 686 mm) |
| Weight | |
| Electronics unit | 32 lbs (14.5 kg) |
| O2 sensor | 60.5 lbs (27.5 kg) |
| Electrical | |
| Alarm indicators | User programmable setpoints (1 per sensor), Form C relays |
| Power requirements | 90 − 240 VAC, 50/60 Hz |
| Power consumption | 200 Watts max. |
| Signal output | Isolated 4−20 mA per sensor |
| User interfaces | 10.4” LCD touchscreen, PS/2 for mouse and keyboard |
| 10/100 Base-T Ethernet, 2 USB ports, RS-232 | |
| Patents | |
| U.S. Patent # 7,277,177 • U.S. Patent # 7,255,836 | |
